Fluid Compatibility Charts
For general fluid compatibility with Contamination Monitoring Products the below rules can be used*

• For mineral oils, synthetic fluids and diesel – the ‘M’ type variant of unit is recommended.
• For water based/ subsea fluids & ‘M’ type fluids – the ‘N’ type variant of unit is recommended.
• For Aerospace phosphate esters, Skydrols® and aggressive fluids along with ‘M’ & ‘N’ type fluids- the ‘S’ type variant is recommended.


• All fluids are required to be clear in appearance to allow light to penetrate unhindered.

*For further and more detailed information on specific fluid compatibility please refer to the below fluid compatibility list

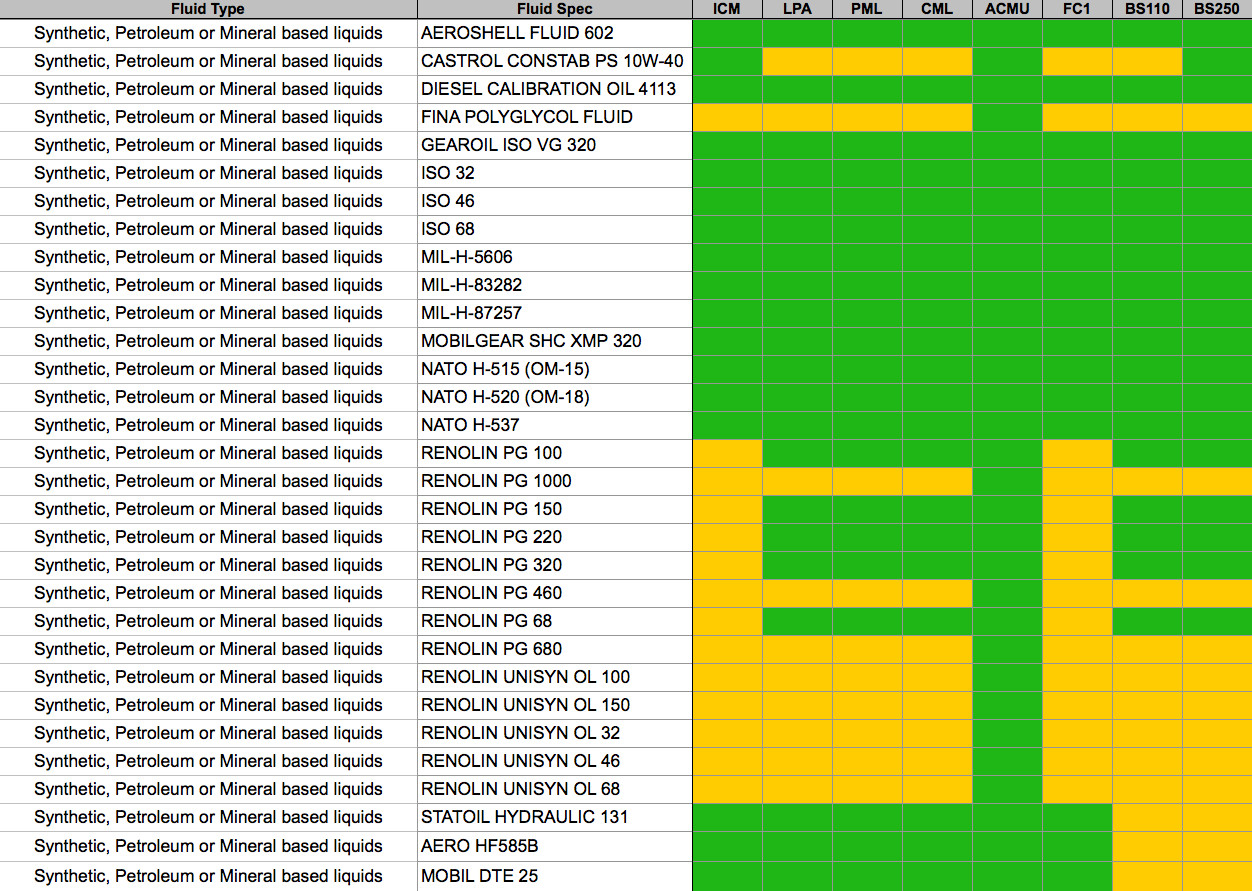

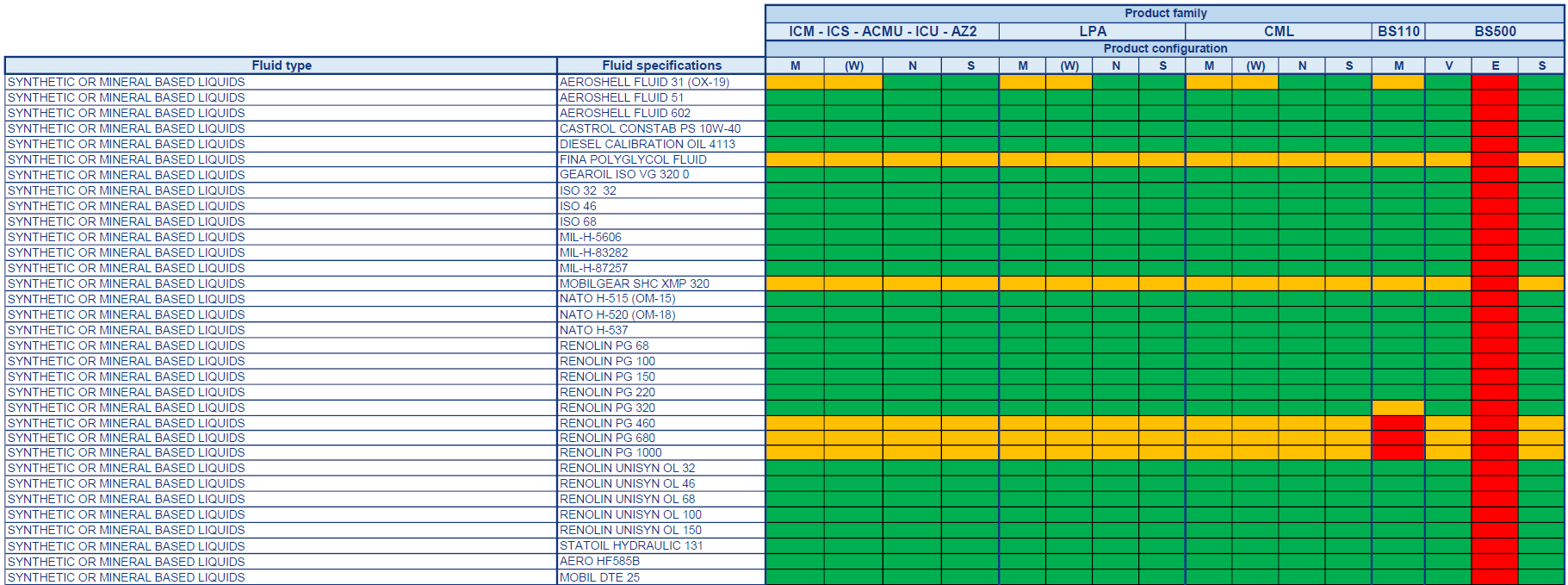

 Hydrocarbon and Synthetic

**Please note that compatibility is based product performance with fluid viscosity at 20° C in standard dye colourant or natural state. Tests are conducted with the suitable fluid in its pure state. Performance of solutions or mixed emulsions cannot be guaranteed. “Compatibility” is defined as a liquid which does not suffer short or long term degradation as a result of coming into contact with the wetted materials contained within the product. It is also a confirmation that the transparency of the liquid is suitable for the sensitivity of the product range.

For details on the specific product code required for your fluid, contact your local sales department

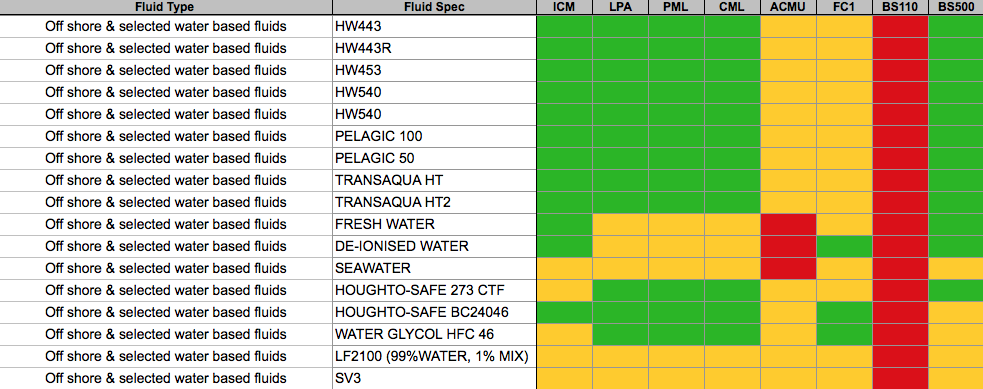

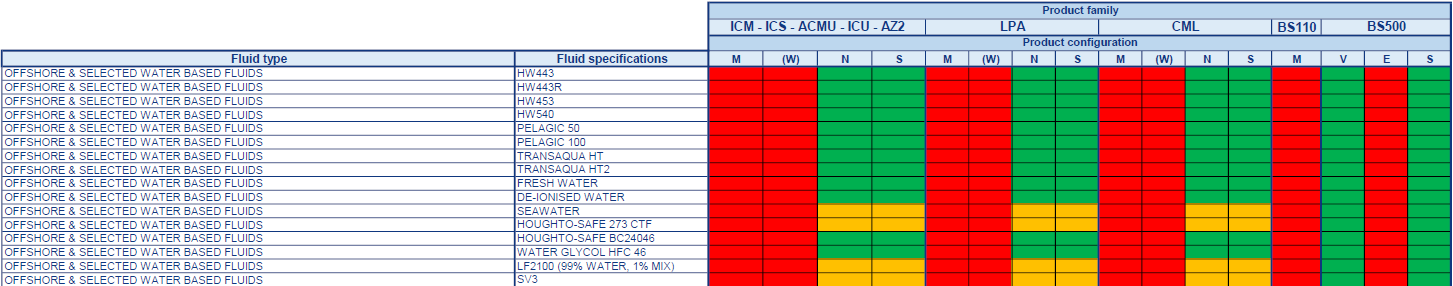

 Offshore

**Please note that compatibility is based product performance with fluid viscosity at 20° C in standard dye colourant or natural state. Tests are conducted with the suitable fluid in its pure state. Performance of solutions or mixed emulsions cannot be guaranteed. “Compatibility” is defined as a liquid which does not suffer short or long term degradation as a result of coming into contact with the wetted materials contained within the product. It is also a confirmation that the transparency of the liquid is suitable for the sensitivity of the product range.

For details on the specific product code required for your fluid, contact your local sales department

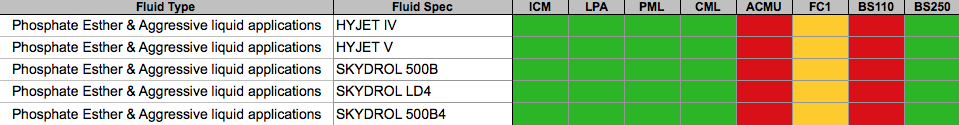

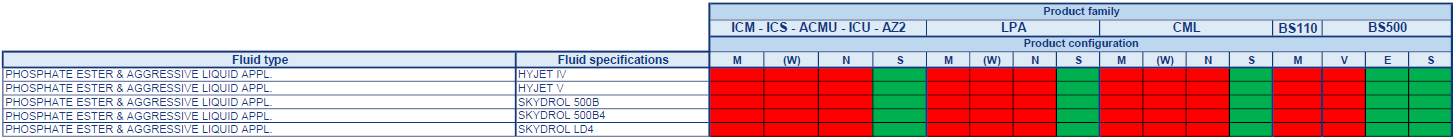

 Aggressive

**Please note that compatibility is based product performance with fluid viscosity at 20° C in standard dye colourant or natural state. Tests are conducted with the suitable fluid in its pure state. Performance of solutions or mixed emulsions cannot be guaranteed. “Compatibility” is defined as a liquid which does not suffer short or long term degradation as a result of coming into contact with the wetted materials contained within the product. It is also a confirmation that the transparency of the liquid is suitable for the sensitivity of the product range.

For details on the specific product code required for your fluid, contact your local sales department

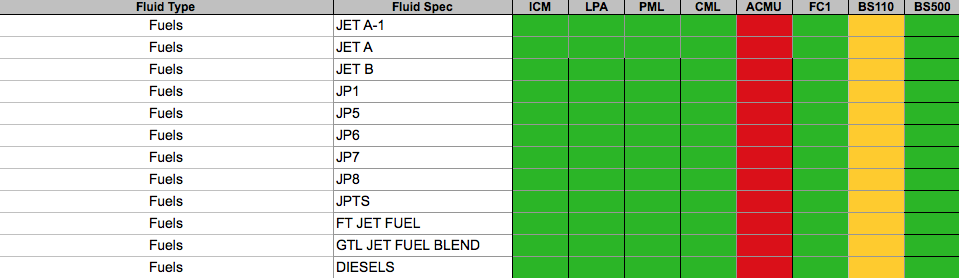

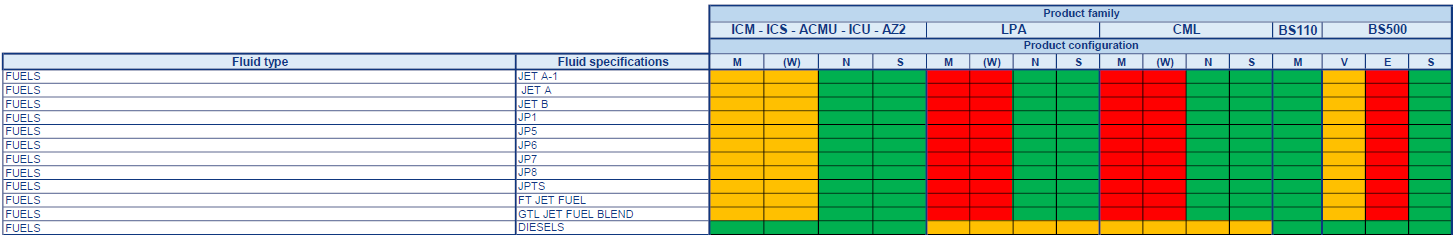

 Fuels

**Please note that compatibility is based product performance with fluid viscosity at 20° C in standard dye colourant or natural state. Tests are conducted with the suitable fluid in its pure state. Performance of solutions or mixed emulsions cannot be guaranteed. “Compatibility” is defined as a liquid which does not suffer short or long term degradation as a result of coming into contact with the wetted materials contained within the product. It is also a confirmation that the transparency of the liquid is suitable for the sensitivity of the product range.

For details on the specific product code required for your fluid, contact your local sales department

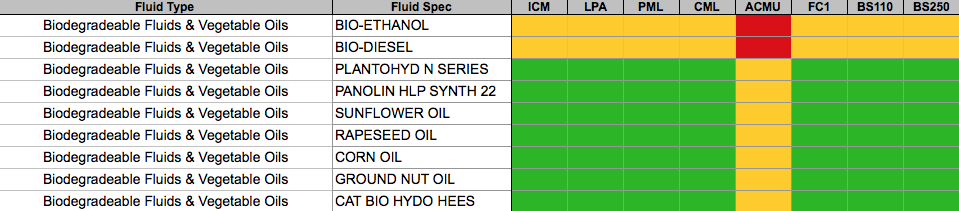

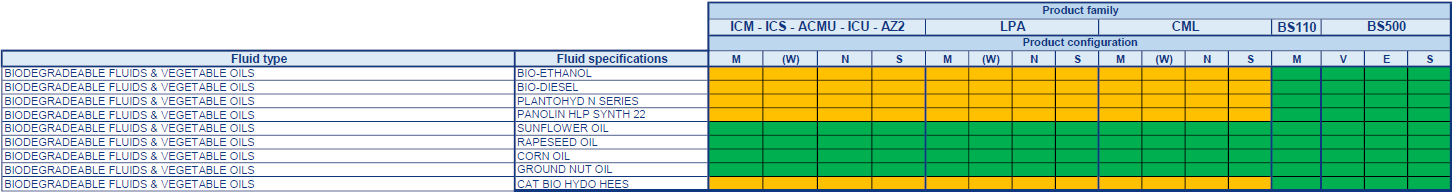

 Bio

**Please note that compatibility is based product performance with fluid viscosity at 20° C in standard dye colourant or natural state. Tests are conducted with the suitable fluid in its pure state. Performance of solutions or mixed emulsions cannot be guaranteed. “Compatibility” is defined as a liquid which does not suffer short or long term degradation as a result of coming into contact with the wetted materials contained within the product. It is also a confirmation that the transparency of the liquid is suitable for the sensitivity of the product range.

For details on the specific product code required for your fluid, contact your local sales department
