Stainless steel construction ensures peak protection when operating in corrosive environments or aggressive fluids. High pressure stainless steel filters are used to protect individual valves or the entire hydraulic circuit from contamination.
FZ stainless steel in-line series is specifically designed for applications in the:
- Process engineering
- Water hydraulics
- Offshore / Marine hydraulics
- High pressure hydraulics
- Applications in harsh or aggressive environments

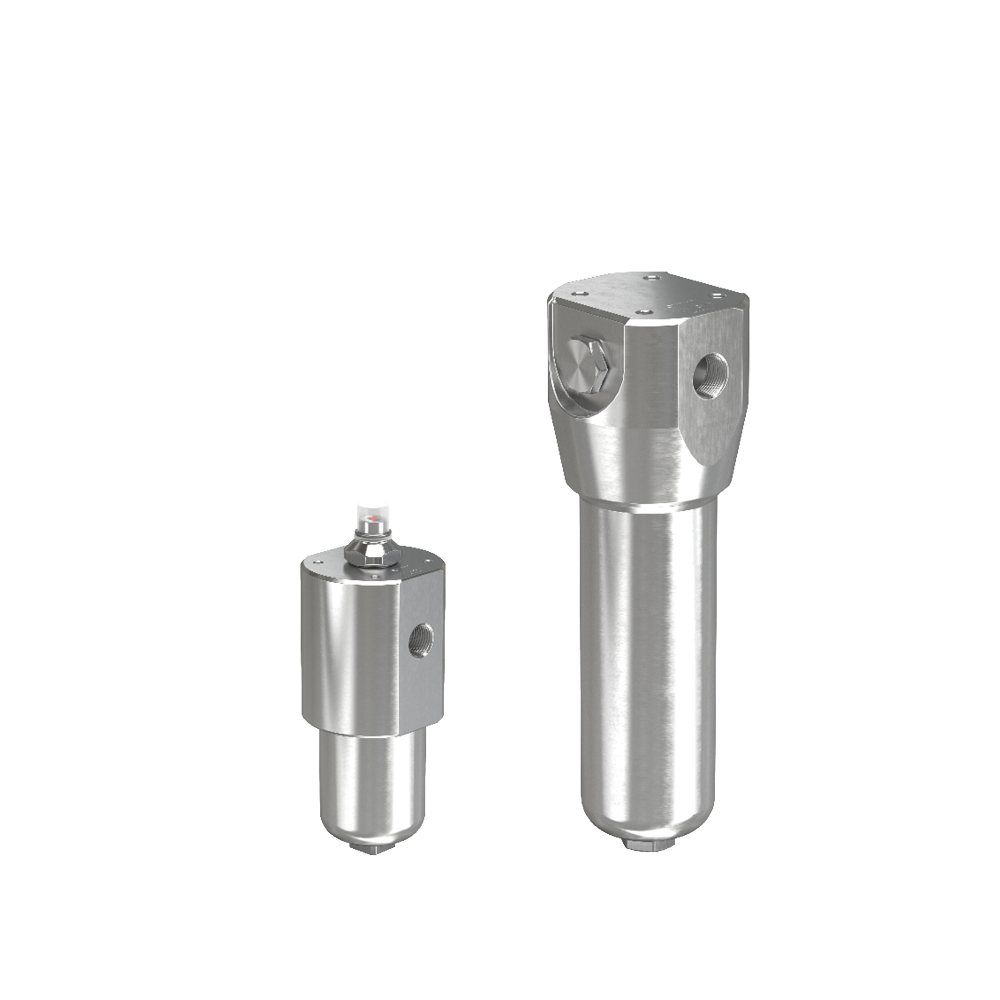

FZPIn-line high pressure stainless filter
Up to 420 bar
Pmax 420 bar, 6090 psi
Qmax 160 l/m, 42 gpm
High pressure low flow stainless steel filter for various fluid applications and arduous conditions

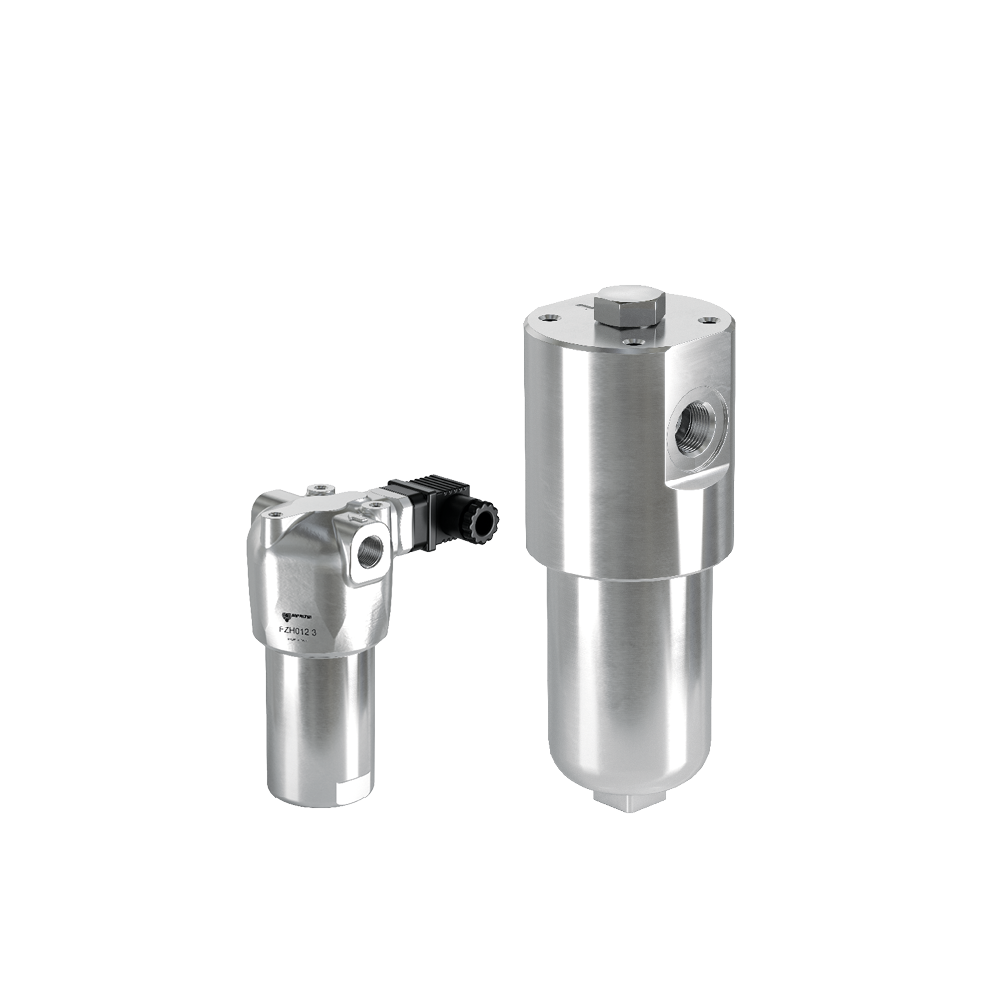

FZHIn-line high pressure stainless filter
Up to 700 bar
Pmax 700 bar, 10150 psi
Qmax 80 l/m, 21 gpm
High pressure, low flow stainless steel filter for various fluid applications and arduous conditions

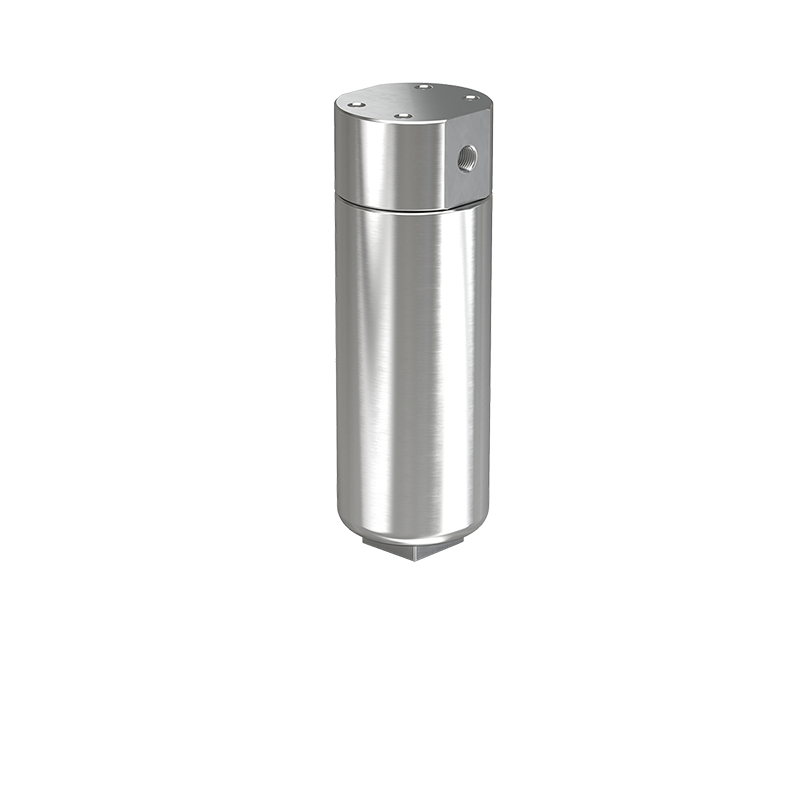

FZXIn-line high pressure stainless steel filter with autoclave mounting options
Up to 1000 bar
Pmax 1000 bar, 14500 psi
Qmax 10 l/m, 3 gpm
Very high pressure, low flow stainless steel filter for various fluid applications and arduous conditions

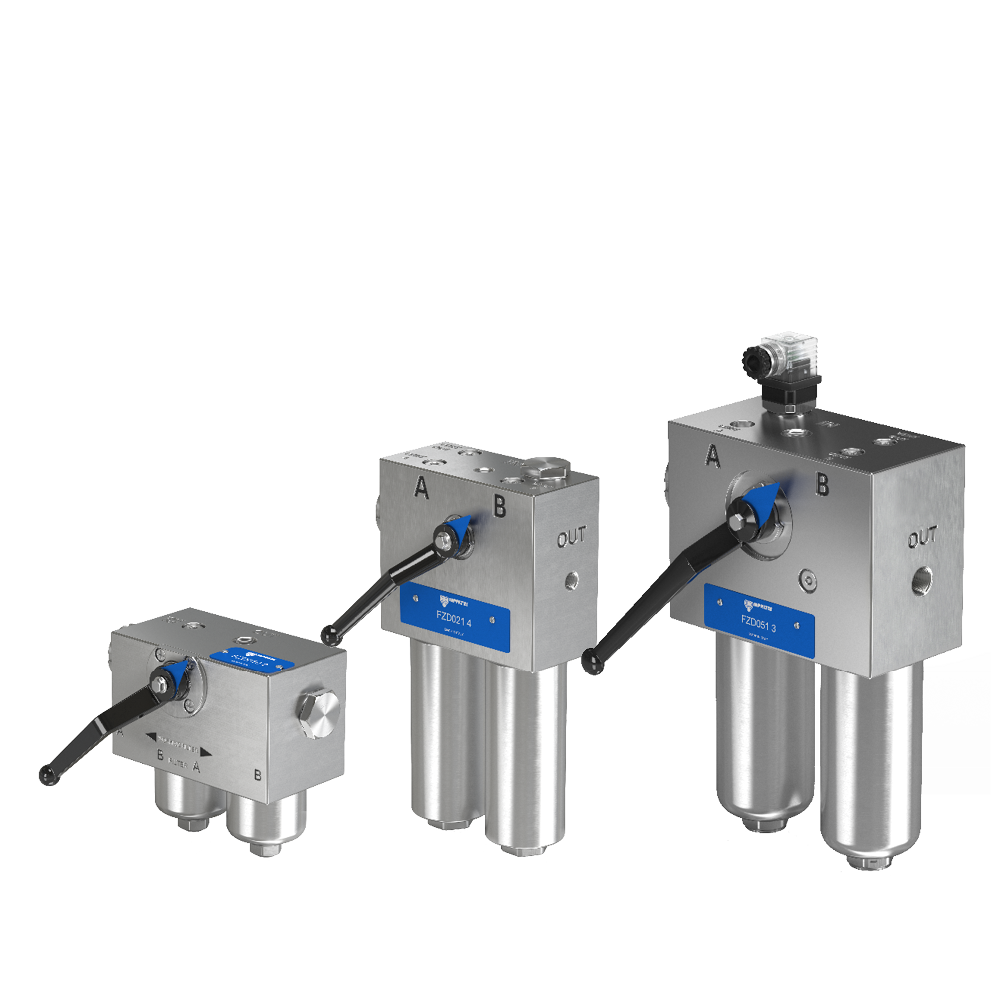

FZDHigh pressure stainless steel filter
Duplex
Pmax 350 bar, 5075 psi
Qmax 60 l/m, 16 gpm
High pressure, duplex steel filter where continuous operation is premium. Suitable for various fluid applications and arduous conditions
